J Type Bolt Manufacturer in Pune
Pune Anchor Bolt manufactures J Type Bolts for construction, industrial, and machinery foundation applications, alongside L-Type, I-Type, and standard anchor bolts. Diameter, length, thread specification, and bend dimensions can be selected according to your application and project drawing requirements.
What Is a J Type Bolt?

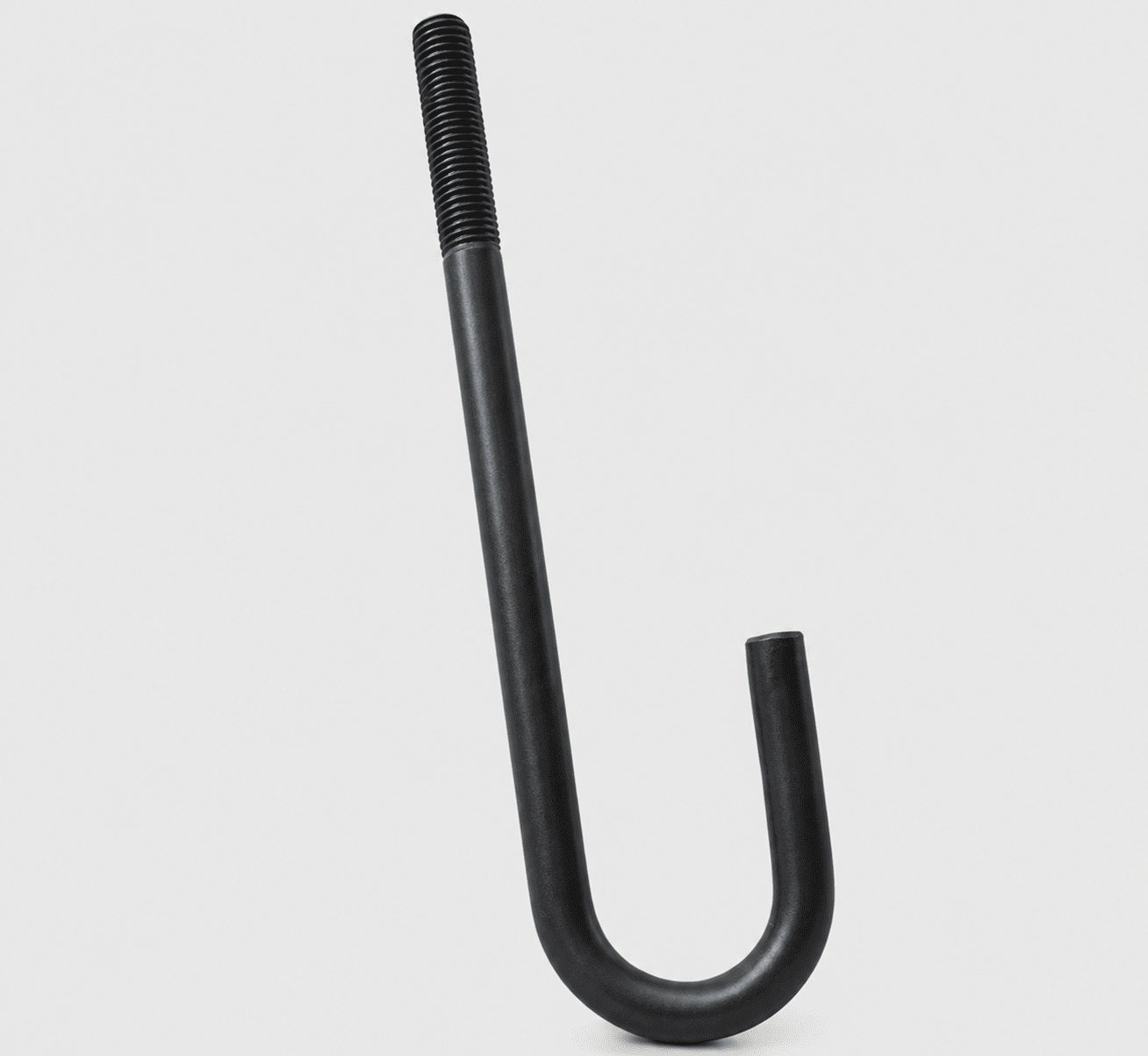

A J Type Bolt is a foundation or anchoring bolt with one end formed into a curved bend shaped like the letter "J." The straight end is typically threaded and extends above the concrete or base surface to secure a structure, machine base, or steel column, while the bent end is embedded within poured concrete.
The bend serves a specific mechanical purpose: once the concrete cures around it, the curved end resists being pulled straight back out under tension, because the bolt would have to physically deform the surrounding concrete to release. This is what gives a J Type Bolt its holding strength in a foundation, rather than relying on threading or friction alone.
J-Type vs. L-Type Bolts: Which One Does Your Project Need?
Since J-Type and L-Type bolts are often confused, and Pune Anchor Bolt manufactures both, it's worth understanding the practical difference before specifying either one.
J-Type Bolts
Feature a full curved "J" bend, generally offering a longer embedded engagement length within the concrete for a given overall bolt length, which is commonly preferred where higher pull-out resistance is needed relative to the embedment depth available.
L-Type Bolts
Feature a single 90-degree bend, generally simpler to form and install, and commonly used where embedment depth is less constrained or where the application doesn't require the additional holding geometry of a full J-bend.
Selection guidance
The right choice depends on your foundation depth, expected load, and structural engineer's specification. If your project drawing already specifies one type, that specification should govern. If you're unsure which to specify, share your load and embedment requirements with our team for a recommendation. [Business information required for verification: any specific load or pull-out strength figures should be confirmed by a structural engineer for your project, not assumed from general bolt geometry.]
Materials Available for J Type Bolts
J Type Bolts from Pune Anchor Bolt are manufactured according to the material required for your application. Available according to application and customer requirements. Please confirm current material options, including any specific steel grades, with our team at the time of enquiry, as we do not list unverified grade specifications on this page.

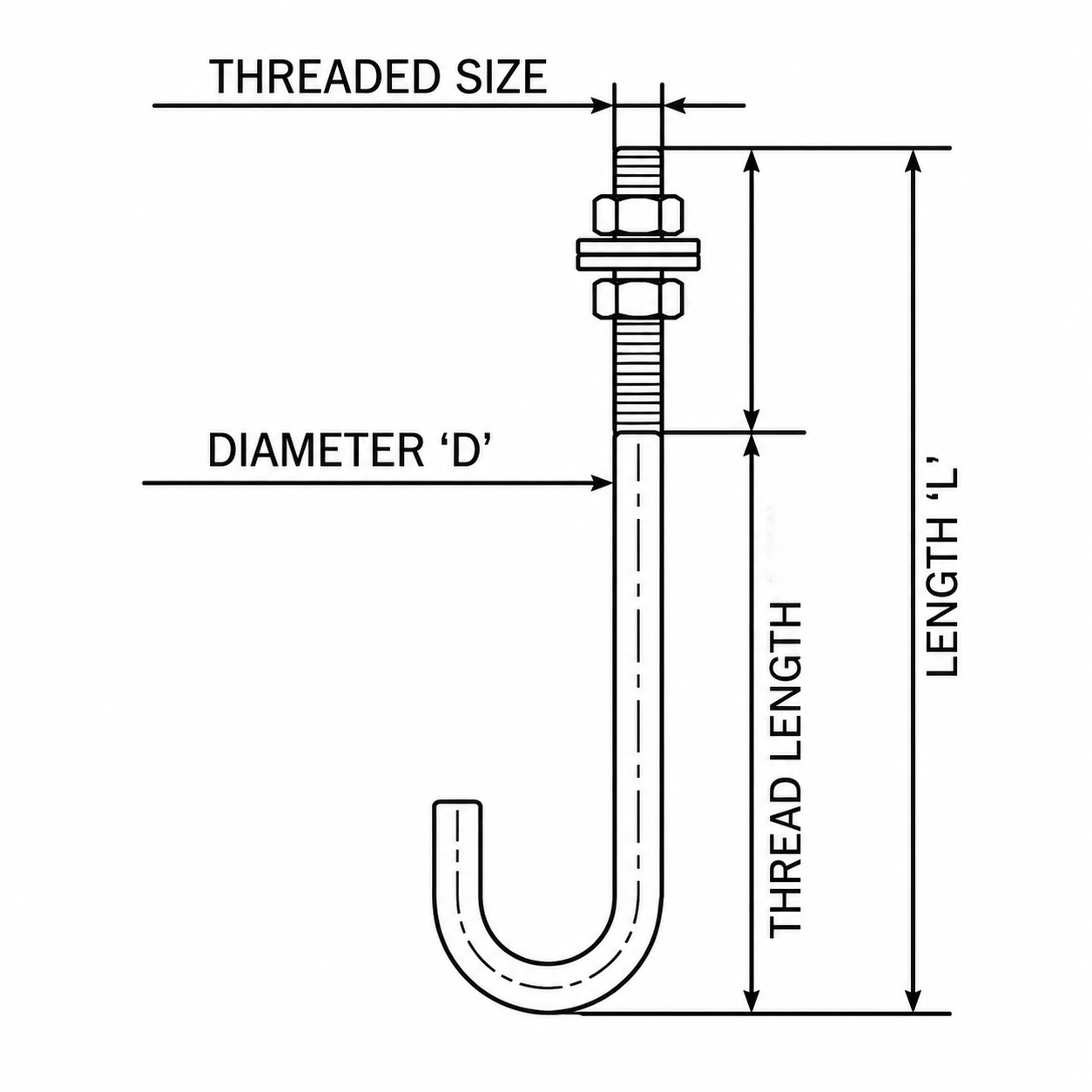

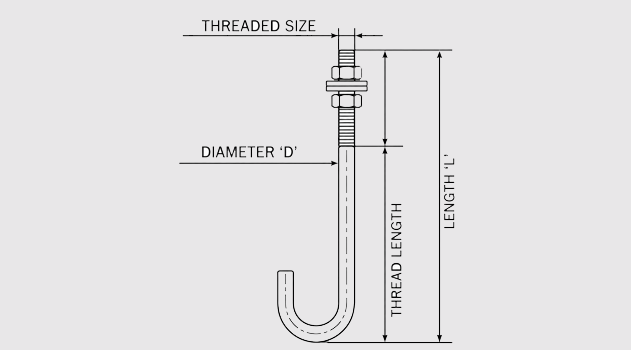

J Type Bolt Sizes & Specifications
J Type Bolt dimensions are manufactured according to project drawings and customer specifications. Relevant specification fields you may need to define include:
How J Type Bolts Are Manufactured
Material selection
Steel is selected to match the material specification confirmed for the order.
Cutting
Raw bar stock is cut to the required overall length.
Threading
The straight end is threaded to the specified thread length and specification.
J-shape bending
The opposite end is formed into the curved J-bend to the required radius and dimensions.
Surface treatment
Applied where specified for the application or environment. [Business information required for verification: specific surface treatment methods available should be confirmed before publishing as a standard offering.]
Inspection
Finished bolts are checked against the confirmed drawing or specification before packaging.
Packaging
Bolts are packed for safe handling and dispatch.
Applications of J Type Bolts
Industrial machinery foundations: Anchoring machine bases to concrete flooring or plinths
Steel structure installations: Securing structural steel columns and base plates.
Construction projects: Commercial and residential foundation anchoring.
Pole and tower installations: Anchoring vertical structures to their concrete base
Infrastructure projects: Structural anchoring in bridges and civil works.
Pipe support systems: Securing support structures to foundations.
Industries Served
Construction
Infrastructure and civil engineering
Industrial manufacturing
Steel fabrication
Machinery and equipment installation
Custom J Type Bolt Manufacturing
Custom J Type Bolts can be manufactured according to your project drawing, including custom diameter, length, thread specification, and bend dimensions. Material and surface finish are selected according to your confirmed requirement. Orders can be manufactured from a supplied technical drawing, and sample-based confirmation can be discussed for projectspecific requirements. Available according to application and customer requirements.
What Information Is Needed for a Custom J Type Bolt Order?
To provide an accurate quotation, please share the following where applicable:
Application details (what the bolt will be anchoring, and expected environmental exposure)
Providing as much of this detail as possible upfront reduces back-and-forth and speeds up your quotation.
Quality Checks We Follow
Dimensional checks: Verifying diameter, length, and bend dimensions against the confirmed specification
Thread inspection: Checking thread accuracy against the specified thread requirement.
Material verification: Confirming the material used matches the confirmed order specification.
Visual inspection: Checking for surface defects and finish consistency before packaging.
Why Choose Pune Anchor Bolt for J Type Bolts?
Local manufacturing base in Pune, reducing lead time and freight cost for Maharashtrabased projects.
Drawing-based custom manufacturing for project-specific bolt requirements.
Product range including J-Type, L-Type, I-Type, and standard anchor bolts under one supplier, useful for projects requiring multiple foundation bolt types.
Direct communication for specification review before manufacturing begins.
Request a Quote for J Type Bolts
Share your diameter, length, thread specification, bend dimensions, material requirement, quantity, and technical drawing (if available), and our team will review your requirement and respond with a quotation.
